Quad operational amplifier featuring a 1MHz gain bandwidth product and 0.5V/µs slew rate. This general-purpose amplifier offers a 100dB voltage gain and operates with a 1.5mA supply current. Designed for surface mounting in a 14-SOIC package, it supports a wide operating supply voltage range from 3V to 32V. Key specifications include a 65dB common mode rejection ratio and 65dB power supply rejection ratio.
PackageSOIC
Current1.5mA
MountingSurface Mount
Power800mW
Quick Jump:
Technical Specifications
Texas Instruments LM324AM technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SOIC
Common Mode Rejection Ratio
65dB
Gain Bandwidth Product
1MHz
Input Bias Current
100nA
Input Offset Voltage (Vos)
3mV
Lead Free
Lead Free
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Amplifiers
4
Number of Channels
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.5mA
Operating Supply Voltage
16V
Output Current
40mA
Output Current per Channel
40mA
Package Quantity
55
Packaging
Rail/Tube
Power Dissipation
800mW
Power Supply Rejection Ratio (PSRR)
65dB
Reach SVHC Compliant
No
RoHS Compliant
No
Slew Rate
0.5V/µs
Supply Current
1.5mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1MHz
Voltage Gain
100dB
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM324AM Datasheet
Download the complete datasheet for Texas Instruments LM324AM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

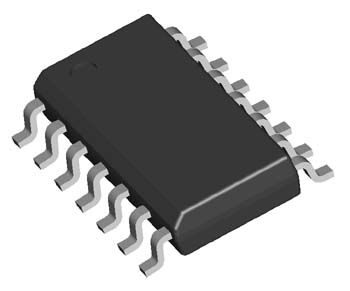

Product Images
