Quad operational amplifier IC featuring a 1MHz gain bandwidth product and 0.5V/µs slew rate. This general-purpose amplifier offers a 100dB voltage gain and 65dB common mode rejection ratio. Designed for through-hole mounting in a CDIP package, it operates with supply voltages from 3V to 32V, with a typical operating supply voltage of 16V and a low operating supply current of 1.5mA. Maximum output current per channel is 40mA, and it operates within a temperature range of 0°C to 70°C.
PackageCDIP
Current1.5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM324J technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | CDIP |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 45nA |
| Input Offset Voltage (Vos) | 2mV |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 16V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Operating Supply Current | 1.5mA |
| Operating Supply Voltage | 16V |
| Output Current | 40mA |
| Output Current per Channel | 40mA |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Slew Rate | 0.5V/µs |
| Supply Current | 1.5mA |
| Voltage Gain | 100dB |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM324J Datasheet
Download the complete datasheet for Texas Instruments LM324J to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

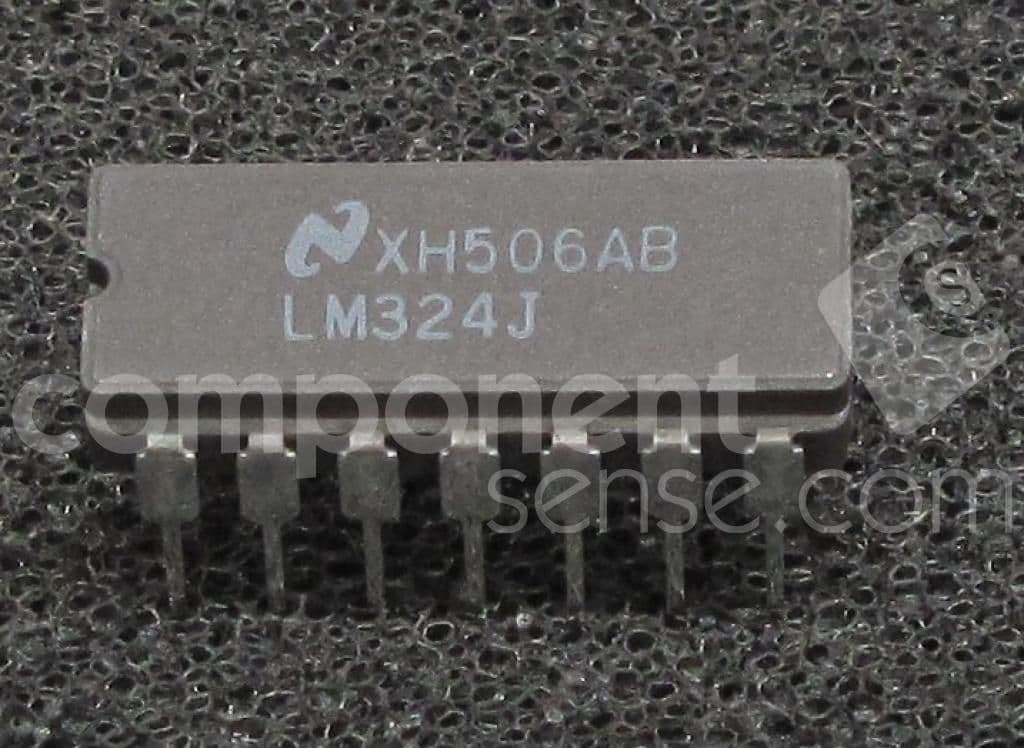

Product Images
