Four-channel operational amplifier featuring a 1.2MHz gain bandwidth product and 100dB voltage gain. This bipolar IC offers a 40mA output current per channel and operates with single or dual supplies from 3V to 32V. Key specifications include an 80dB common mode rejection ratio and a 1.5mA operating supply current. Packaged in a 14-PDIP, this component is suitable for operation between 0°C and 70°C.
PackagePDIP
Quick Jump:
Technical Specifications
Texas Instruments LM324N technical specifications.
General
Package/Case
PDIP
Common Mode Rejection Ratio
80dB
Dual Supply Voltage
9V
Gain
100dB
Gain Bandwidth Product
1.2MHz
Height
4.57mm
Input Bias Current
45nA
Input Offset Voltage (Vos)
7mV
Input Voltage Noise Density
35nV/sqrt Hz
Lead Free
Lead Free
Length
19.3mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Number of Channels
4
Operating Supply Current
1.5mA
Operating Supply Voltage
16V
Output Current per Channel
40mA
Package Quantity
25
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
100dB
RoHS Compliant
No
Series
LM324
Slew Rate
0.5V/µs
Supply Type
Single, Dual
Technology
BIPOLAR
Voltage Gain
100dB
Weight
0.032734oz
Width
6.35mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM324N Datasheet
Download the complete datasheet for Texas Instruments LM324N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

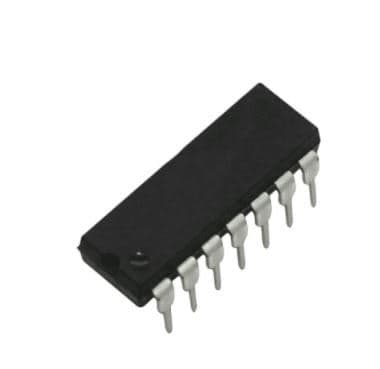

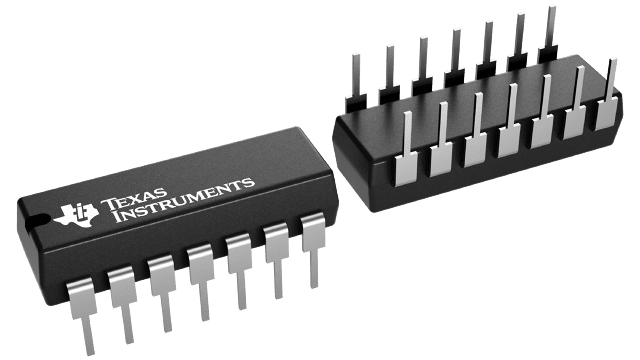

Product Images
