Voltage-to-Frequency Converter IC, operating with a single supply voltage range of 4V to 40V. Features a maximum operating frequency of 100kHz and exceptional linearity of 0.01%. Packaged in an 8-pin PDIP for through-hole mounting, this RoHS compliant component operates within a temperature range of 0°C to 70°C. Dimensions include a height of 3.3mm, width of 6.35mm, and length of 9.27mm.
Frequency100kHz
PackagePDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM331N/NOPB technical specifications.
General
| Package/Case | PDIP |
| Frequency | 100kHz |
| Height | 3.3mm |
| Lead Free | Lead Free |
| Length | 9.27mm |
| Linearity | 0.01% |
| Max Frequency | 100kHz |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 40V |
| Min Supply Voltage | 4V |
| Mount | Through Hole |
| Number of Circuits | 1 |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Weight | 0.032805oz |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM331N/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM331N/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

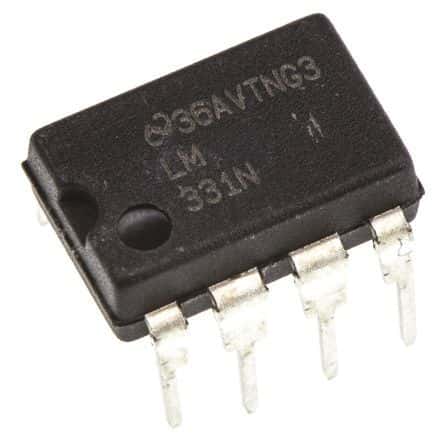

Product Images
