Analog output temperature sensor featuring a ±2°C accuracy and 10mV/K gain. This component operates within a -40°C to 100°C temperature range and requires a 5V supply voltage. It is housed in a TO-92 through-hole package with a typical supply current of 400µA. The sensor provides an analog voltage output and is RoHS compliant.
PackageTO-92
Current400uA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM335Z/NOPB technical specifications.
General
| Package/Case | TO-92 |
| Height | 5.2mm |
| Interface | Analog |
| Lead Free | Lead Free |
| Length | 5.2mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 5mA |
| Max Supply Voltage (DC) | 40V |
| Min Supply Voltage (DC) | 5V |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Operating Supply Current | 400uA |
| Output | ANALOG |
| Output Current | 1mA |
| Output Type | Analog, Voltage, Analog Voltage |
| Output Voltage | 3.04V |
| Packaging | Bulk |
| Power Supply | 5V |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 400uA |
| Width | 4.19mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM335Z/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM335Z/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

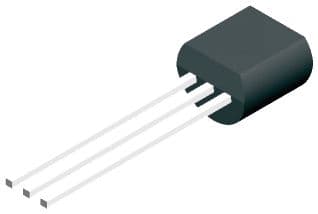

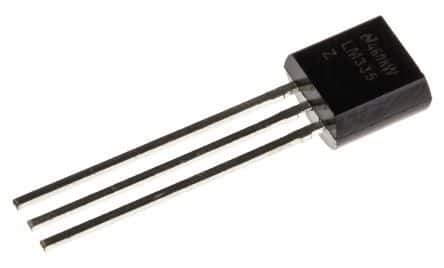

Product Images
