Texas Instruments
LM3370SD-4221/NOPB
Dual Synchronous Step-Down DC-DC Converter with Dynamic Voltage Scaling Function 16-WSON -30 to 85
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3370SD-4221/NOPB technical specifications.
General
Efficiency
90%
Features
I²C
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Channels
2
Number of Outputs
2
Operating Supply Current
600mA
Output Configuration
Positive
Output Current
600mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
600uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®
Synchronous Rectifier
Yes
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM3370SD-4221/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3370SD-4221/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

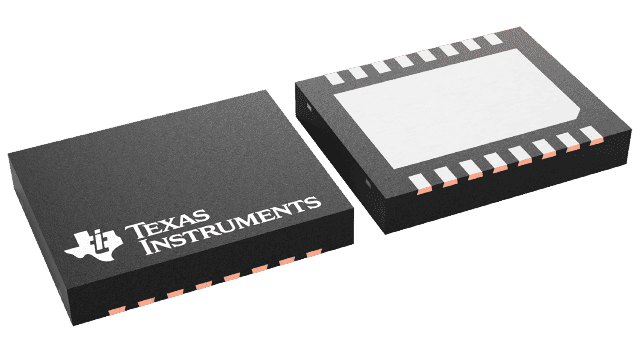

Product Images
