PackageTO-220
MountingThrough Hole
PolarityNegative
Quick Jump:
Technical Specifications
Texas Instruments LM337T/LF01 technical specifications.
General
| Package/Case | TO-220 |
| Dropout Voltage | 2.4V |
| Lead Free | Contains Lead |
| Max Input Voltage | -50V |
| Min Input Voltage | -4.2V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Power Dissipation | 20W |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Current | 1.5A |
| Output Type | Adjustable |
| Output Voltage | -37V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Polarity | Negative |
| Quiescent Current | 3mA |
| Radiation Hardening | No |
| Reference Voltage | -1.287V |
| RoHS Compliant | Yes |
| Series | LM337-N |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM337T/LF01 Datasheet
Download the complete datasheet for Texas Instruments LM337T/LF01 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

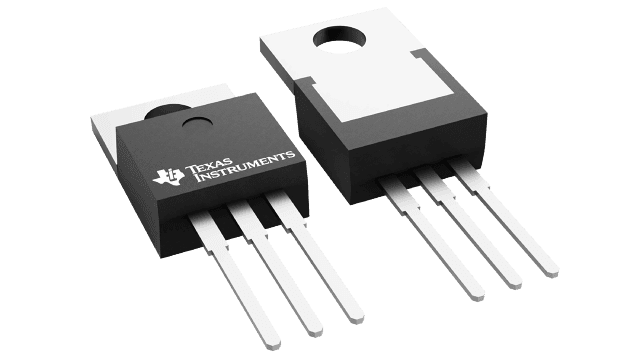

Product Images
