Quad differential comparator IC, featuring 4 independent channels with TTL output. Operates from a 1V to 30V supply range, with a maximum supply current of 500µA. Offers a response time of 1.3µs, input bias current of 250nA, and input offset voltage of 3mV. Packaged in a 14-SOIC surface-mount case, this RoHS compliant component is suitable for commercial grade applications within a 0°C to 70°C operating temperature range.
PackageSOIC
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM339ADR technical specifications.
General
| Package/Case | SOIC |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 15V |
| Min Dual Supply Voltage | 1V |
| Max Input Current | 250nA |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 500uA |
| Max Supply Voltage | 30V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Elements | 4 |
| Output Current | 20mA |
| Output Current per Channel | 6mA |
| Output Type | TTL |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 1.3us |
| RoHS Compliant | Yes |
| Supply Current | 2mA |
| Technology | BIPOLAR |
| Voltage Gain | 106.02dB |
| Weight | 0.004318oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM339ADR Datasheet
Download the complete datasheet for Texas Instruments LM339ADR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

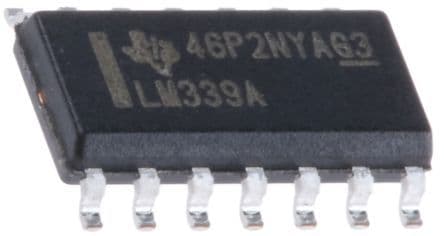

Product Images
