Quad Comparator IC, featuring low power consumption and low offset voltage, operates with a wide supply voltage range from 1V to 36V, supporting dual supplies up to 18V. This general-purpose component offers TTL output compatibility and a voltage gain of 106.02dB. Packaged in a 14-SOIC surface mount case, it boasts a maximum supply current of 2mA and a power dissipation of 760mW. With a response time of 1.3µs and propagation delay of 0.5µs, it is RoHS compliant and operates within a temperature range of 0°C to 70°C.
PackageSOIC
Voltage36V
Current2mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM339M/NOPB technical specifications.
General
Package/Case
SOIC
Dual Supply Voltage
9V
Height
1.45mm
Input Bias Current
250nA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Length
8.64mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
2mA
Max Supply Voltage
36V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Elements
4
Output Compatibility
CMOS
Output Current
16mA
Output Type
TTL
Packaging
Rail/Tube
Power Dissipation
760mW
Propagation Delay
0.5us
Quiescent Current
2.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
1.3us
RoHS Compliant
Yes
Supply Current
2mA
Technology
BIPOLAR
Termination
SMD/SMT
Type
General Purpose
Voltage
36V
Voltage Gain
106.02dB
Width
3.91mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM339M/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM339M/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

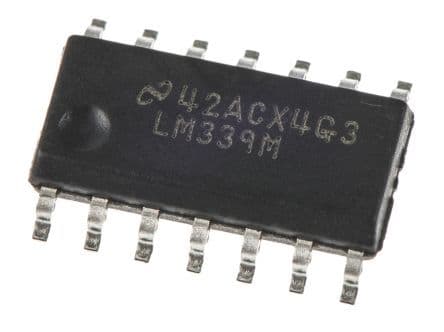

Product Images
