The LM3404MRX/NOPB is a PowerWise DC/DC controller from Texas Instruments. It operates over a temperature range of -40°C to 125°C and is RoHS compliant. This device is suitable for use in applications requiring a maximum supply voltage of 42V and a minimum supply voltage of 6V. The LM3404MRX/NOPB is available in a surface mount package and is packaged on a tape and reel.
Frequency1MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3404MRX/NOPB technical specifications.
General
| Dimming | PWM |
| Frequency | 1MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 42V |
| Min Supply Voltage | 6V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 1 |
| Output Current per Channel | 1A |
| Output Voltage | 40V |
| Packaging | Tape and Reel |
| Quiescent Current | 625uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3404MRX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3404MRX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

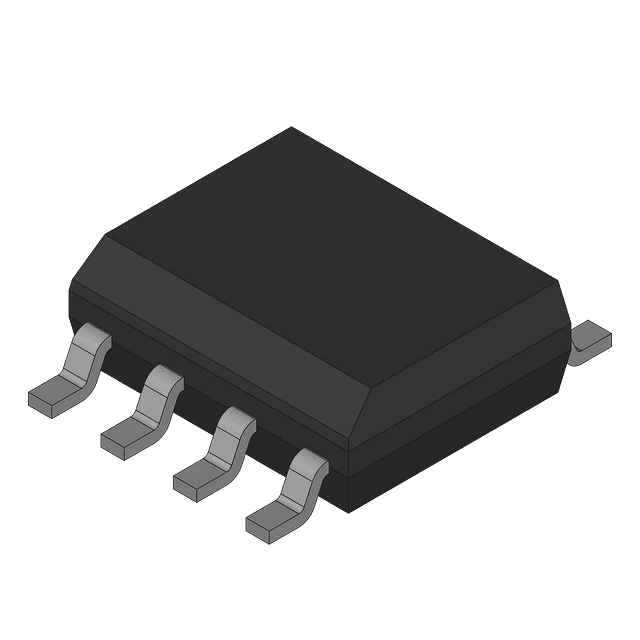

Product Images
