Texas Instruments
LM3406HVQMHQ1
1.5-A automotive constant current buck regulator for driving high power LEDs 14-HTSSOP -40 to 150
Frequency1MHz
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3406HVQMHQ1 technical specifications.
General
| Package/Case | HTSSOP |
| Dimming | PWM |
| Frequency | 1MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 75V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.5A |
| Max Output Voltage | 73V |
| Min Output Voltage | 200mV |
| Max Supply Voltage | 75V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current per Channel | 1.5A |
| Packaging | Rail/Tube |
| Quiescent Current | 1.2mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3406HVQMHQ1 Datasheet
Download the complete datasheet for Texas Instruments LM3406HVQMHQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

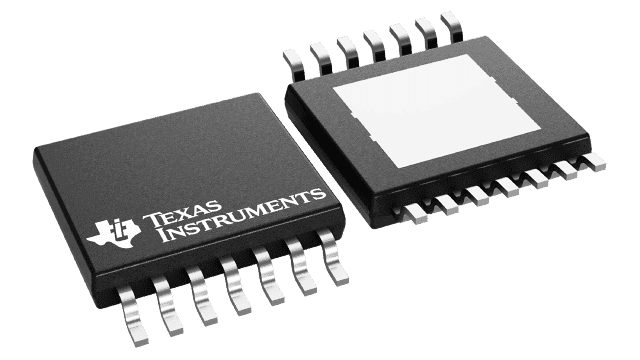

Product Images
