Positive fixed output voltage regulator, 12V output, 1A output current, with 2% output voltage accuracy. Features a maximum input voltage of 35V and a dropout voltage of 2V. Operates within a temperature range of 0°C to 125°C. Packaged in a TO-263 surface mount case.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM340S-12/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-263
Dropout Voltage
2V
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Min Current Limit
2.4A
Max Input Voltage
35V
Min Input Voltage
14.6V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Min Output Voltage
12V
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
12V
Output Voltage Accuracy
2%
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
8mA
Radiation Hardening
No
RoHS Compliant
Yes
Tolerance
5%
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM340S-12/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM340S-12/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

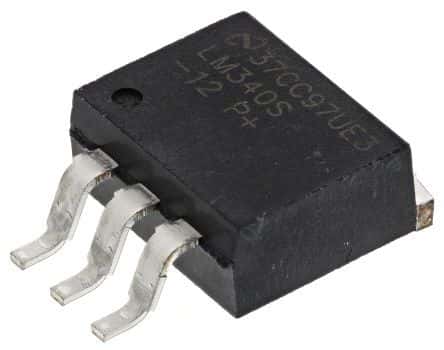

Product Images
