Positive fixed output linear voltage regulator with a 15V nominal output voltage and 1A maximum output current. Features a 2% output voltage accuracy and a 2V dropout voltage. Operates with a maximum input voltage of 35V and a maximum supply voltage of 30V, within a temperature range of 0°C to 125°C. Packaged in a TO-220 case for through-hole mounting.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM340T-15/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
2V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
35V
Min Input Voltage
17.7V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Voltage
15V
Max Supply Voltage
30V
Min Supply Voltage
17.5V
Mount
Through Hole
Nominal Output Voltage
15V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
15V
Output Voltage Accuracy
2%
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
80dB
Quiescent Current
8mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Through Hole
Tolerance
5%
Weight
0.08113oz
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM340T-15/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM340T-15/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

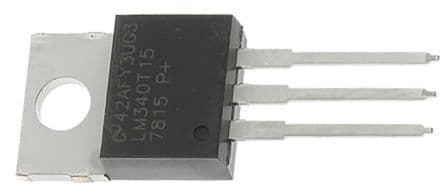

Product Images
