Texas Instruments
LM3429Q1MHX/NOPB
Automotive Simple N-channel controller for constant current LED drivers 14-HTSSOP -40 to 125
Frequency2MHz
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3429Q1MHX/NOPB technical specifications.
General
| Package/Case | HTSSOP |
| Dimming | Analog, PWM |
| Frequency | 2MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 75V |
| Min Supply Voltage | 4.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.6mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
| Topology | Buck-Boost, SEPIC |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3429Q1MHX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3429Q1MHX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

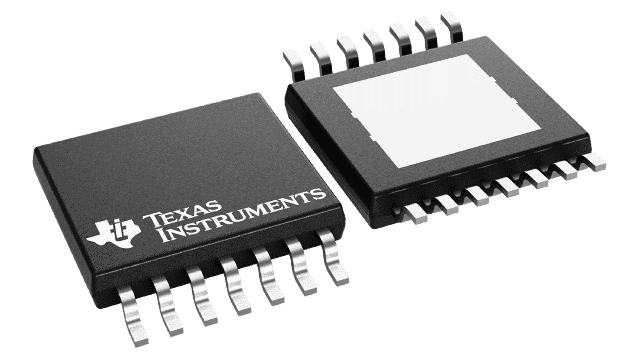

Product Images
