Texas Instruments
LM34910CSDX/NOPB
8-50V, 1.25A Constant On-Time Non-Synchronous Buck Regulator 10-WSON -40 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM34910CSDX/NOPB technical specifications.
General
| Efficiency | 92% |
| Lead Free | Lead Free |
| Max Input Voltage | 50V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.25A |
| Max Output Voltage | 45V |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 50V |
| Output Configuration | Positive |
| Output Current | 1.25A |
| Output Type | Adjustable |
| Output Voltage | 45V |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Quiescent Current | 630uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM34910CSDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM34910CSDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

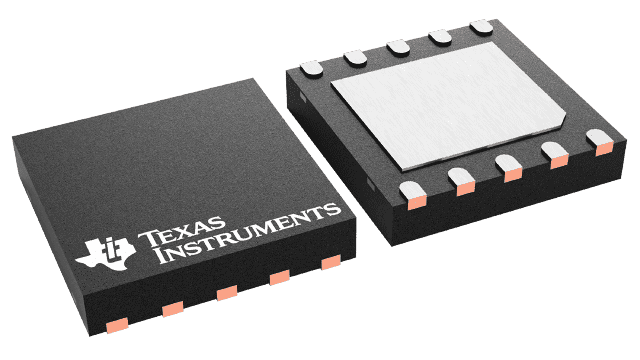

Product Images
