Constant On-Time Non-Synchronous Buck Regulator, featuring a wide 8-40V input voltage range and up to 600mA output current. This surface mount device offers adjustable output voltage from 2.5V to 35V, with a maximum output current of 600mA and efficiency up to 90%. Operating across a -40°C to 125°C temperature range, it boasts a low quiescent current of 500uA and is RoHS compliant. The compact 2x1.5mm, 0.335mm height package is supplied on tape and reel.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM34919TL/NOPB technical specifications.
General
| Efficiency | 90% |
| Height | 0.335mm |
| Lead Free | Lead Free |
| Length | 1.97mm |
| Max Input Voltage | 40V |
| Min Input Voltage | 8V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Max Output Voltage | 35V |
| Min Output Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 40V |
| Output Current | 600mA |
| Output Type | Adjustable |
| Output Voltage | 35V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 500uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Synchronous Rectifier | No |
| Width | 1.51mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM34919TL/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM34919TL/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

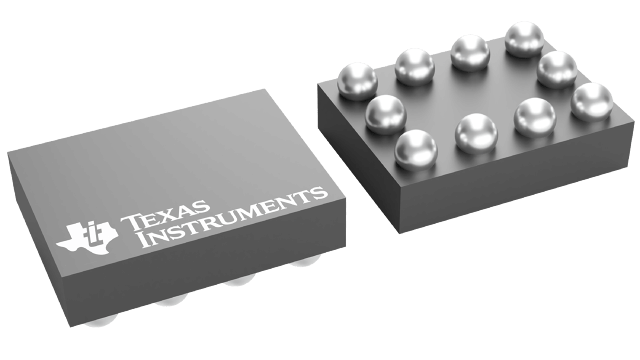

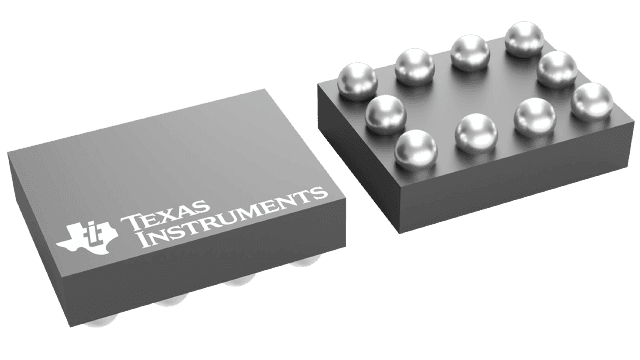

Product Images
