Texas Instruments
LM34922MYX/NOPB
6-28V, 2A Constant On-Time Non-Synchronous Buck Regulator with Adjustable Current Limit 10-HVSSOP -40 to 125
PackageHVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM34922MYX/NOPB technical specifications.
General
| Package/Case | HVSSOP |
| Lead Free | Lead Free |
| Max Input Voltage | 28V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 28V |
| Min Output Voltage | 2.51V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.6mA |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM34922MYX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM34922MYX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

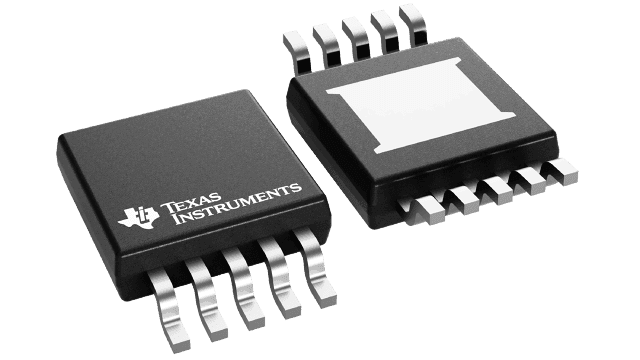

Product Images
