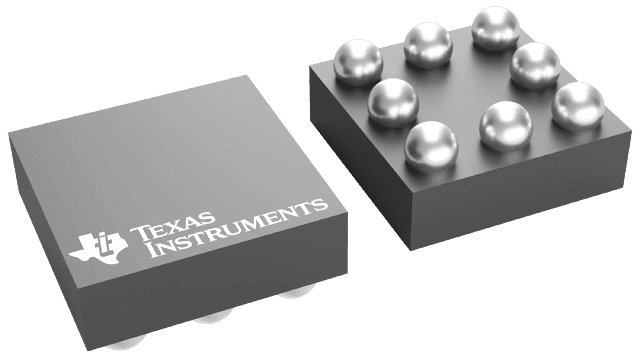

Synchronous step-up DC/DC converter for white LED applications. Features 15.5V output voltage, 70mA output current, and 85% efficiency. Operates with input voltages from 2.7V to 7V, at a 1.15MHz switching frequency. Includes Over-Voltage Protection (OVP) and a maximum duty cycle of 94%. Packaged in an 8-DSBGA surface mount package, this lead-free and RoHS compliant component is suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM3501TL-16/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Efficiency | 85% |
| Features | OVP |
| Frequency | 1.15MHz |
| Isolation | Isolated |
| Lead Free | Lead Free |
| Max Duty Cycle | 94% |
| Max Input Voltage | 7V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 70mA |
| Mount | Surface Mount |
| Nominal Supply Current | 1mA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Operating Supply Current | 300uA |
| Operating Supply Voltage | 7V |
| Output Current | 70mA |
| Output Voltage | 15.5V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LM3501 |
| Topology | Boost |
| RoHS | Compliant |
