Adjustable linear voltage regulator, 3A output current, 35V maximum input voltage, and 1.25V to 33V adjustable output voltage range. Features 1% output voltage accuracy, 2.3V dropout voltage, and 65dB power supply rejection ratio. Operates from -40°C to 125°C with a maximum power dissipation of 25W. Packaged in a TO-220 case for through-hole mounting.
PackageTO-220
Current Rating3A
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM350AT/NOPB technical specifications.
General
Accuracy
1%
Package/Case
TO-220
Current Rating
3A
Dropout Voltage
2.3V
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
35V
Min Input Voltage
4.2V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
33V
Min Output Voltage
1.25V
Max Power Dissipation
25W
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
3A
Output Type
Adjustable
Output Voltage
33V
Output Voltage Accuracy
1%
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Dissipation
25W
Power Supply Rejection Ratio (PSRR)
65dB
Quiescent Current
400uA
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Voltage
1.262V
RoHS Compliant
Yes
Tolerance
2%
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM350AT/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM350AT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

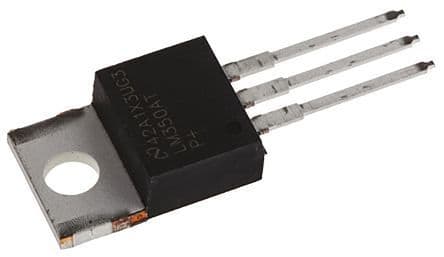

Product Images
