Texas Instruments
LM3532TME-40A/NOPB
High efficiency white LED driver with programmable Ambient Light Sensing Capability and I<sup>2</sup>C Compati 16-DSBGA -40 to 125
Frequency500 kHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3532TME-40A/NOPB technical specifications.
General
| Package/Case | SMD/SMT |
| Height | 0.395mm |
| Lead Free | Lead Free |
| Length | 1.87mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1.35mA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Number of Outputs | 3 |
| Operating Frequency | 500 kHz |
| Output Current | 20mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | LM3532 |
| Thickness | 420um |
| Topology | Boost |
| Width | 1.77mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3532TME-40A/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3532TME-40A/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

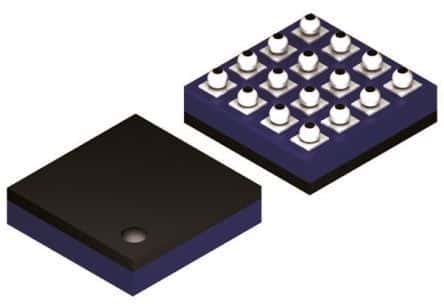

Product Images
