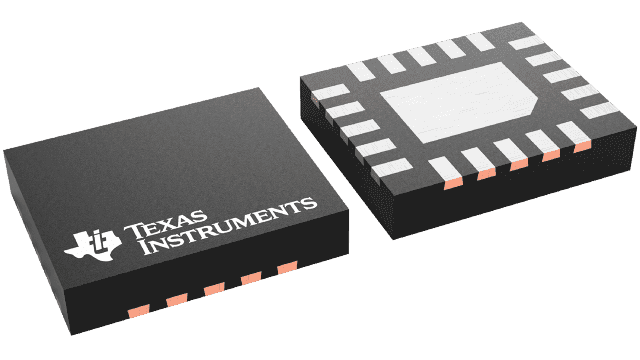

The LM3550SP/NOPB is a charge pump boost driver from Texas Instruments, designed for high-frequency operation up to 1MHz. It can supply up to 5A of output current and has a nominal output voltage of 5.3V. The device features I2C dimming and is RoHS compliant. It operates over a temperature range of -30°C to 85°C and is available in a surface mount package.
Sign in to ask questions about the Texas Instruments LM3550SP/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM3550SP/NOPB technical specifications.
| Dimming | I²C |
| Frequency | 1MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 5A |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Nominal Input Voltage (DC) | 3.6V |
| Nominal Supply Current | 168uA |
| Number of Channels | 1 |
| Number of Outputs | 1 |
| Output Current per Channel | 5A |
| Output Voltage | 5.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 168uA |
| RoHS Compliant | Yes |
| Topology | Charge Pump, Boost |
| RoHS | Compliant |
