Texas Instruments
LM3557SD-2
1.1A SWITCHING REGULATOR, 1600kHz SWITCHING FREQ-MAX, PDSO8, 1 MM HEIGHT, LLP-8
Frequency1.6MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3557SD-2 technical specifications.
General
| Frequency | 1.6MHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 7.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Segments | 5 |
| Output Voltage | 26V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Termination | SMD/SMT |
| Topology | Boost |
| Width | 3mm |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LM3557SD-2 Datasheet
Download the complete datasheet for Texas Instruments LM3557SD-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

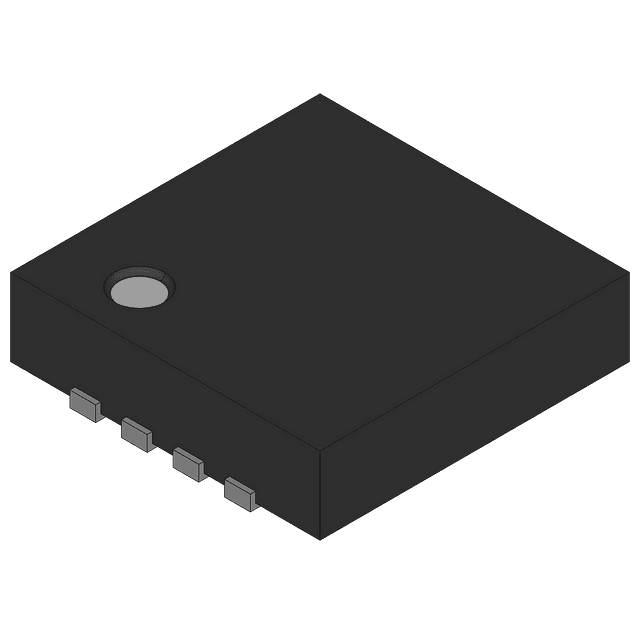

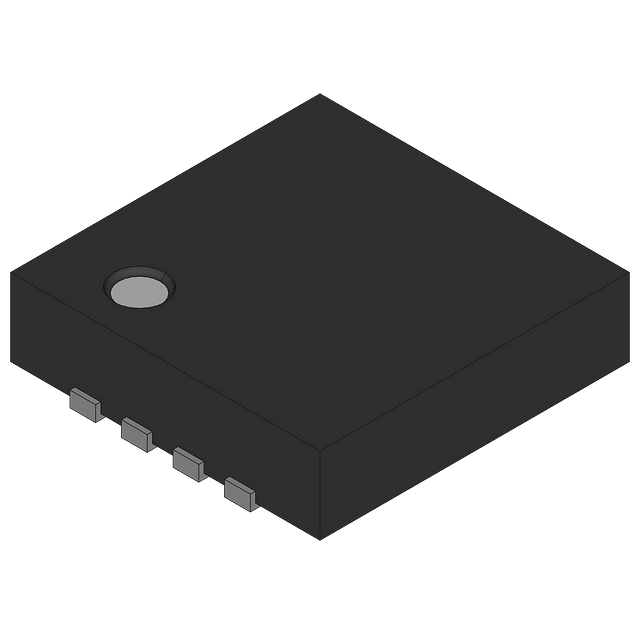

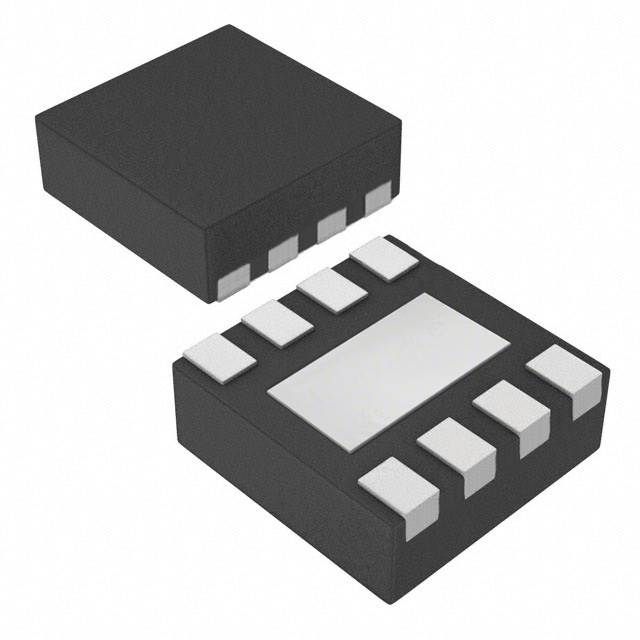

Product Images
