The LM3560TLX/NOPB is a 2-channel I2C dimming driver with a maximum operating frequency of 2MHz and a maximum output current per channel of 1A. It is designed to operate within a temperature range of -40°C to 85°C and is compatible with lead-free soldering processes. This device is suitable for use in applications where a high level of precision and control are required, such as in LED lighting systems. The LM3560TLX/NOPB is available in a VFBGA package with a quantity of 3000 units per reel.
Frequency2MHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3560TLX/NOPB technical specifications.
General
| Dimming | I²C |
| Frequency | 2MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Current per Channel | 1A |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 900uA |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3560TLX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3560TLX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

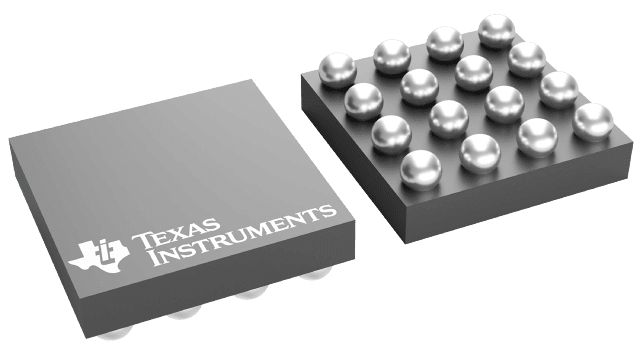

Product Images
