Dual-channel operational amplifier featuring a 1MHz gain bandwidth product and 0.1V/µs slew rate. This general-purpose op amp offers a 32V maximum supply voltage and operates with a 1.5V to 16V dual supply. With a 65dB common mode rejection ratio and 65dB power supply rejection ratio, it provides reliable performance. The 8-pin PDIP package supports through-hole mounting and operates within a 0°C to 70°C temperature range.
PackagePDIP
Current500uA
MountingThrough Hole
Power830mW
Quick Jump:
Technical Specifications
Texas Instruments LM358AN/NOPB technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 1MHz |
| Height | 5.08mm |
| Input Bias Current | 100nA |
| Input Offset Voltage (Vos) | 3mV |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Dual Supply Voltage | 16V |
| Min Dual Supply Voltage | 1.5V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 3V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 1mA |
| Operating Supply Voltage | 16V |
| Output Current | 30mA |
| Output Current per Channel | 40mA |
| Output Type | PUSH-PULL |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Dissipation | 830mW |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 0.1V/µs |
| Supply Current | 500uA |
| Technology | BIPOLAR |
| Thickness | 3.9mm |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 100dB |
| Width | 6.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM358AN/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM358AN/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

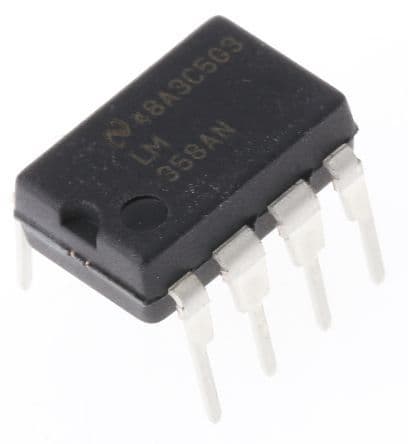

Product Images
