The LM3642TLE/NOPB is a 5V 1.5A boost driver with I²C dimming capability. It operates over a temperature range of -40°C to 85°C. The device is packaged in a surface mount SMD/SMT package. It is compliant with RoHS regulations and is lead free.
Frequency4MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3642TLE/NOPB technical specifications.
General
| Package/Case | SMD/SMT |
| Dimming | I²C |
| Frequency | 4MHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Nominal Supply Current | 750uA |
| Number of Outputs | 1 |
| Number of Segments | 1 |
| Output Current | 1.5A |
| Output Current per Channel | 1.5A |
| Output Voltage | 5V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 750uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3642TLE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3642TLE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

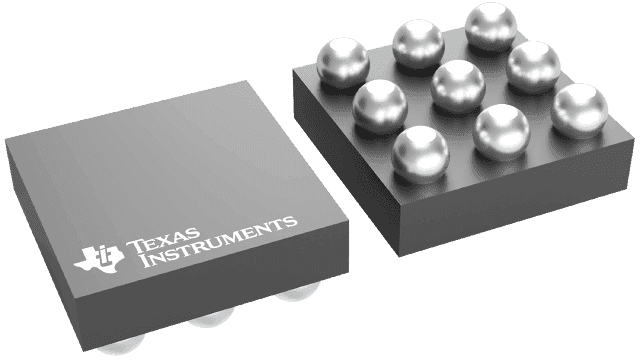

Product Images
