Texas Instruments
LM3658SD-A/NOPB
Battery Charger Controller Li-Ion/Li-Pol 1000mA 4.2V 10-Pin WSON EP T/R
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3658SD-A/NOPB technical specifications.
General
| Battery Pack Voltage | 4.2V |
| Fault Protection | Over Current, Over Temperature |
| Height | 800um |
| Interface | USB |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Charge Current | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4.35V |
| Mount | Surface Mount |
| Nominal Input Voltage | 6V |
| Output Current | 25mA |
| Output Voltage | 4.2V |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 750um |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3658SD-A/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3658SD-A/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

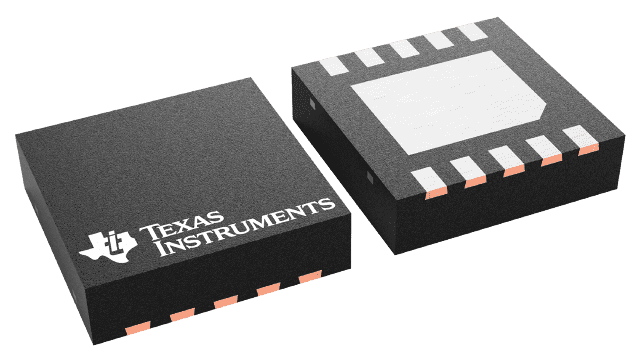

Product Images
