The LM3658SD-B/NOPB is a surface mount DC-DC converter IC with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It features fault protection against over current and over temperature, and is compliant with RoHS regulations. The device has a maximum supply voltage of 6V and a minimum supply voltage of 4.35V, and is capable of delivering an output current of 1A at an output voltage of 4.2V. It is available in a package quantity of 1000 units, packaged in tape and reel. The LM3658SD-B/NOPB is a lead free device with a USB interface.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3658SD-B/NOPB technical specifications.
General
| Battery Pack Voltage | 4.2V |
| Fault Protection | Over Current, Over Temperature |
| Interface | USB |
| Lead Free | Lead Free |
| Max Charge Current | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4.35V |
| Mount | Surface Mount |
| Output Current | 1A |
| Output Voltage | 4.2V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3658SD-B/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3658SD-B/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

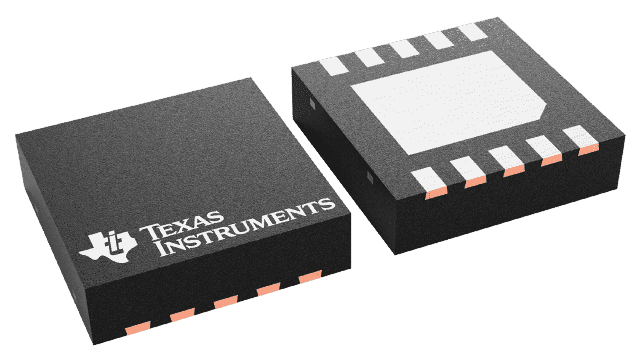

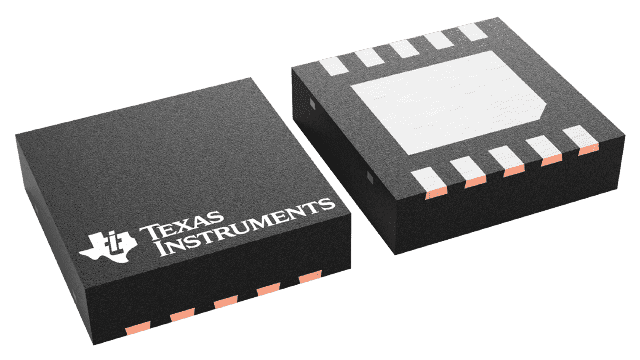

Product Images
