Dual source USB/AC Li-ion battery charger IC for portable applications. Features include a 4.2V battery pack voltage, 1A maximum charge current, and 25mA output current. Operates within a 4.35V to 6V supply voltage range and a -40°C to 85°C temperature range. Includes over-current and over-temperature fault protection. Surface mountable in a 10-WSON package, this lead-free component is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3658SD/NOPB technical specifications.
General
| Battery Pack Voltage | 4.2V |
| Fault Protection | Over Current, Over Temperature |
| Interface | USB |
| Lead Free | Lead Free |
| Max Charge Current | 1A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 4.35V |
| Mount | Surface Mount |
| Output Current | 25mA |
| Output Voltage | 4.2V |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3658SD/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3658SD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

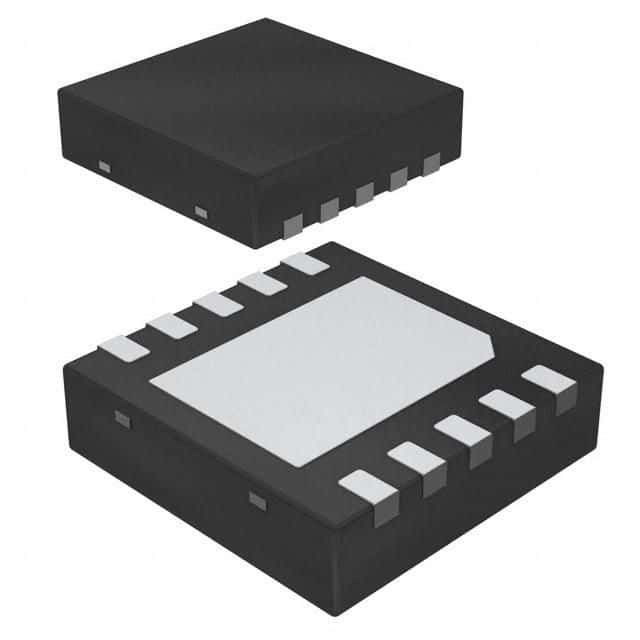

Product Images
