High efficiency, 1A dual mode single inductor buck-boost DC/DC converter with adjustable output voltage from 2.8V to 3.3V. Features up to 95% efficiency, 45µA quiescent current, and a maximum input voltage of 5.5V. This surface mount component operates from -40°C to 85°C and is packaged in cut tape. The device includes a synchronous rectifier and is RoHS compliant.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3668SD-2833/NOPB technical specifications.
General
| Efficiency | 95% |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 3.3V |
| Min Output Voltage | 2.8V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 5.5V |
| Output Current | 1A |
| Output Type | Adjustable, Fixed |
| Output Voltage | 3.3V |
| Packaging | Cut Tape |
| Quiescent Current | 45uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Synchronous Rectifier | Yes |
| Topology | Buck-Boost |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3668SD-2833/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3668SD-2833/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

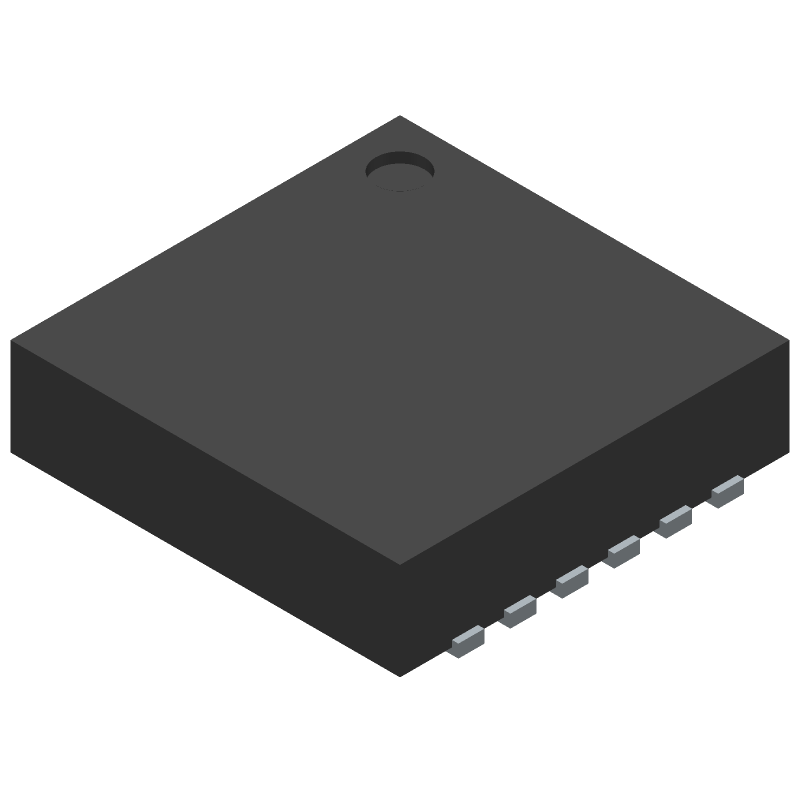

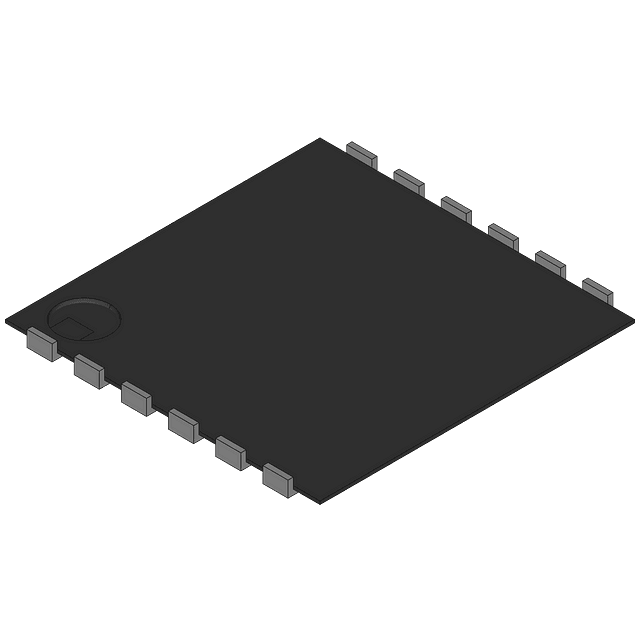

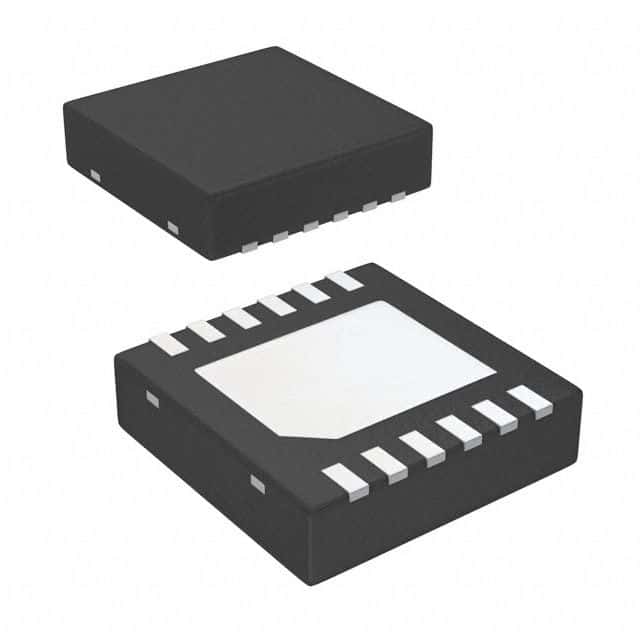

Product Images
