Technical Specifications
Texas Instruments LM3686TLE-AADW/NOPB technical specifications.
General
Current - Output 1
600mA
Current - Output 2
350mA
Current - Output 3
300mA
Lead Free
Lead Free
Max Input Voltage
5.5V
Min Input Voltage
2.7V
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Number of Outputs
3
Output Current
900mA
Output Type
Fixed, Adjustable
Output Voltage
2.8V
Package Quantity
250
Packaging
Tape and Reel
Quiescent Current
70uA
Radiation Hardening
No
RoHS Compliant
Yes
Series
LM3686
Synchronous Rectifier
Yes
Voltage - Output 1
1.8V
Voltage - Output 2
1.2V
Voltage - Output 3
2.8V
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM3686TLE-AADW/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3686TLE-AADW/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

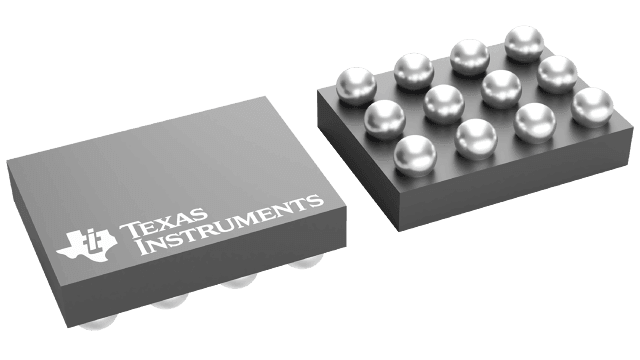

Product Images
