Dual-output DC-DC converter with integrated LDO, featuring a 1.8MHz switching frequency. Delivers 400mA at 1.8V and 350mA at 1.5V, with a maximum combined output current of 750mA. Operates from a 2.7V to 5.5V input supply, offering a low dropout voltage of 82mV. Packaged in a 9-DSBGA surface-mount format, suitable for operation between -30°C and 125°C.
Frequency1.8MHz
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3687TL-1815/NOPB technical specifications.
General
| Package/Case | SMD/SMT |
| Current - Output 1 | 400mA |
| Current - Output 2 | 350mA |
| Dropout Voltage | 82mV |
| Frequency | 1.8MHz |
| Lead Free | Lead Free |
| Max Input Voltage | 5.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 750mA |
| Max Output Voltage | 1.8V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Outputs | 2 |
| Output Current | 750mA |
| Output Voltage | 1.8V |
| Packaging | Tape and Reel |
| Quiescent Current | 10uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Termination | SMD/SMT |
| Voltage - Output 1 | 1.8V |
| Voltage - Output 2 | 1.5V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3687TL-1815/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3687TL-1815/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

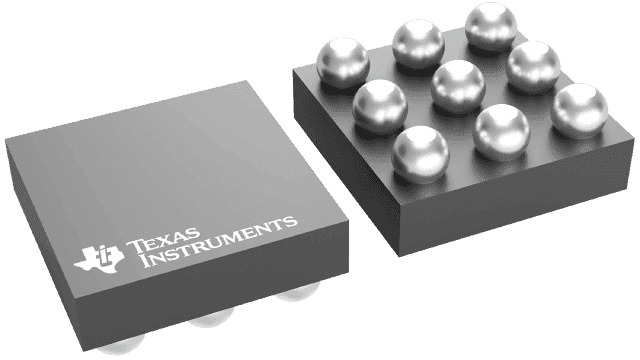

Product Images
