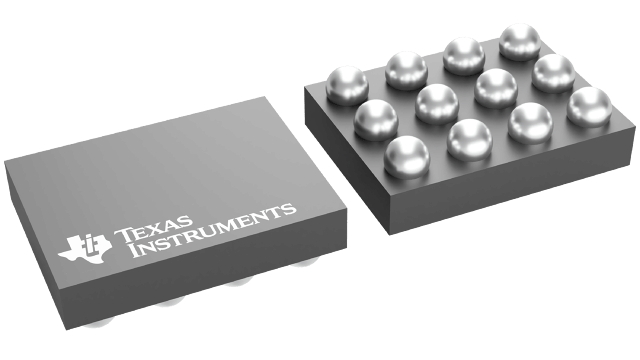

3-string backlight driver IC featuring 11-bits of exponential dimming. Operates with a 2.7V to 5.5V input voltage and delivers up to 30mA output current per channel with a maximum output voltage of 41.1V. Supports operating frequencies of 500kHz and 1MHz, with a low quiescent current of 1mA and a maximum supply current of 3uA. Surface mountable in a 12-DSBGA package, this RoHS compliant component is rated for an operating temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM3697YFQR datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Frequency | 1MHz |
| Lead Free | Lead Free |
| Max Input Voltage (DC) | 5.5V |
| Min Input Voltage (DC) | 2.7V |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 30mA |
| Max Output Voltage | 41.1V |
| Max Supply Current | 3uA |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Number of Channels | 3 |
| Number of Outputs | 3 |
| Operating Frequency | 500 kHz, 1 MHz |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Output Voltage | 40V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Topology | Boost |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments LM3697YFQR to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.
