Single-channel 5.5W audio power amplifier in a PDIP package. Features include 34dB voltage gain, 450kHz bandwidth, and 8Ω load impedance. Operates from a 12V to 26V supply voltage with a typical 24V operating voltage. Maximum power dissipation is 1.67W. RoHS compliant and lead-free.
PackagePDIP
Current25mA
Power5.5W
Quick Jump:
Technical Specifications
Texas Instruments LM384N/NOPB technical specifications.
General
| Bandwidth | 450kHz |
| Package/Case | PDIP |
| Gain | 34dB |
| Height | 3.3mm |
| Input Bias Current | 100nA |
| Lead Free | Lead Free |
| Length | 19.05mm |
| Load Impedance | 8R |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 5.5W |
| Max Power Dissipation | 1.67W |
| Max Supply Voltage | 26V |
| Min Supply Voltage | 12V |
| Number of Channels | 1 |
| Operating Supply Voltage | 24V |
| Output Power | 5.5W |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Power Dissipation | 1.67W |
| Power Supply Rejection Ratio (PSRR) | 31dB |
| Quiescent Current | 25mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LM384 |
| Supply Current | 25mA |
| Supply Type | Single |
| Voltage Gain | 33.98dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM384N/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM384N/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

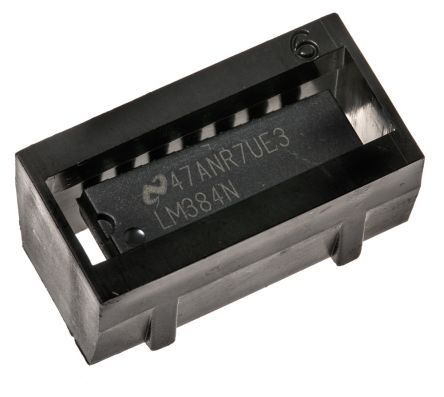

Product Images
