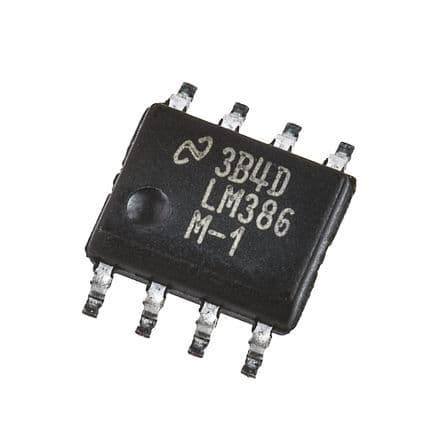

Mono audio amplifier IC, Class-AB, delivering 325mW output power into an 8Ω load. Features a 46dB voltage gain and a 300kHz bandwidth. Operates from a 4V to 12V supply voltage with a quiescent current of 8mA. Packaged in an 8-pin SOIC (D) for surface-mount termination, with dimensions of 4.9mm length, 3.9mm width, and 1.45mm height. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM386M-1/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM386M-1/NOPB technical specifications.
| Bandwidth | 300kHz |
| Package/Case | D |
| Description | AUDIO AMPLIFIER |
| Height | 1.45mm |
| Input Bias Current | 250nA |
| Length | 4.9mm |
| Load Impedance | 8R |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 325mW |
| Max Power Dissipation | 730mW |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 4V |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Output Power | 325mW |
| Packaging | Rail/Tube |
| Power Dissipation | 730mW |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Quiescent Current | 8mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 1.58mm |
| Voltage Gain | 46dB |
| Width | 3.9mm |
| RoHS | Compliant |
