Texas Instruments
LM3880MF-1AE/NOPB
3 Rail Simple Power Sequencer with Fixed Time Delay 6-SOT-23 -40 to 125
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3880MF-1AE/NOPB technical specifications.
General
| Package/Case | SOT-23 |
| Height | 1.02mm |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Reset Threshold Voltage | 1.4V |
| Min Reset Threshold Voltage | 1V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Voltages Monitored | 3 |
| Operating Supply Current | 25uA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 25uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Threshold Voltage | 1.25V |
| Watchdog Timer | No |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3880MF-1AE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3880MF-1AE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

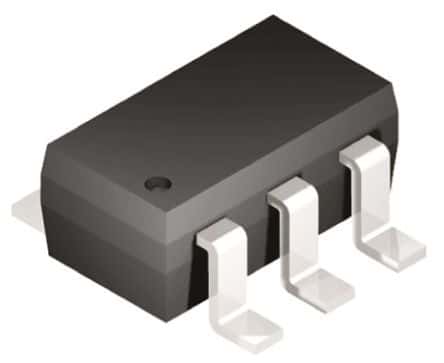

Product Images
