Class-AB audio amplifier IC, delivering 68W output power into a 4Ω load. Features a wide supply voltage range from 20V to 94V (single) or ±10V to ±42V (dual), with a maximum dual supply of ±42V. Boasts a high Power Supply Rejection Ratio (PSRR) of 120dB and Common Mode Rejection Ratio (CMRR) of 85dB. Operates within a temperature range of 0°C to 70°C and is housed in a TO-220 package. Includes mute functionality and a gain of 3dB.
PackageTO-220
Power68W
Quick Jump:
Technical Specifications
Texas Instruments LM3886T/NOPB technical specifications.
General
Package/Case
TO-220
Common Mode Rejection Ratio
85dB
Dual Supply Voltage
28V
Gain
3dB
Gain Bandwidth Product
8MHz
Height
10.69mm
Input Bias Current
1uA
Input Offset Voltage (Vos)
10mV
Lead Free
Lead Free
Length
20.02mm
Load Impedance
4R
Max Dual Supply Voltage
42V
Min Dual Supply Voltage
10V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Power
68W
Max Power Dissipation
125W
Max Supply Voltage
84V
Min Supply Voltage
20V
Number of Channels
1
Output Current
11.5A
Output Power
68W
Package Quantity
20
Packaging
Rail/Tube
Power Dissipation
125W
Power Supply Rejection Ratio (PSRR)
120dB
Quiescent Current
50mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Overture™
Supply Type
Single, Dual
Unity Gain Bandwidth Product
8MHz
Voltage Gain
115dB
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM3886T/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3886T/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

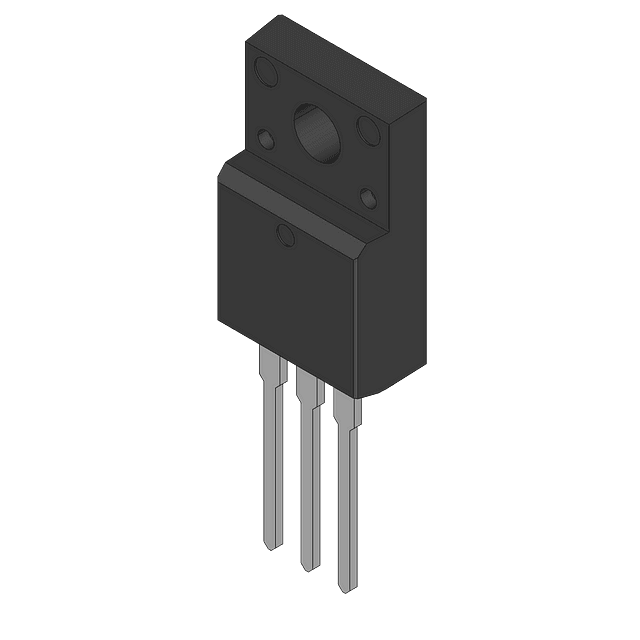

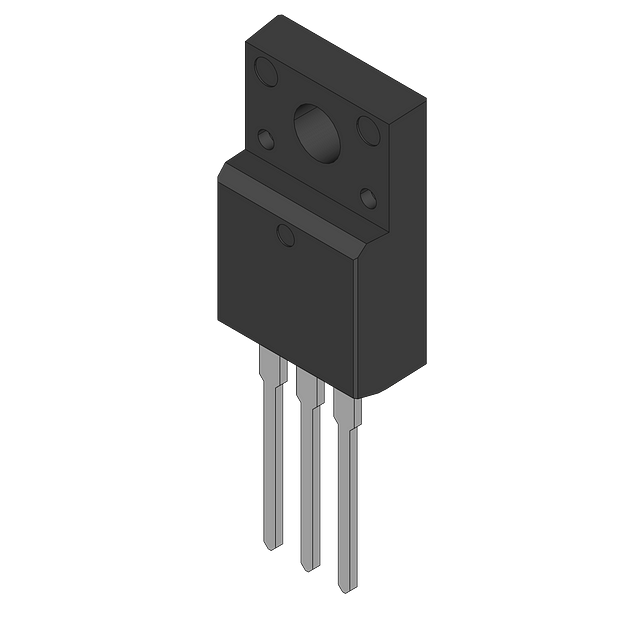

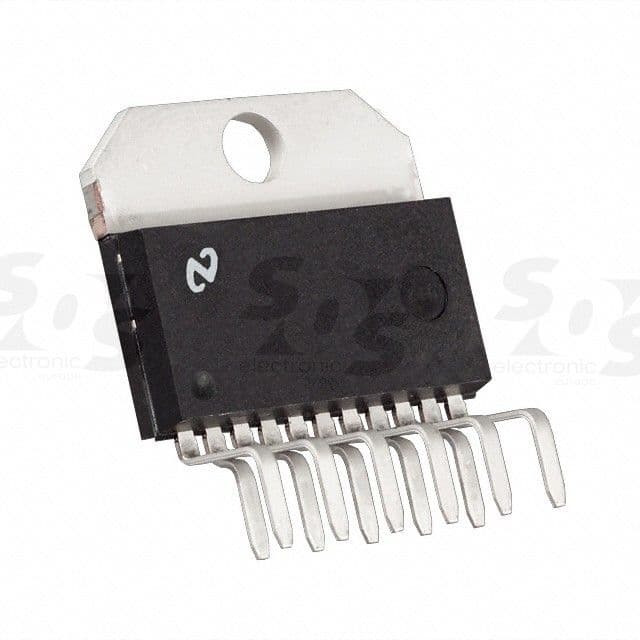

Product Images
