Class-AB audio amplifier IC, delivering 68W output power into an 8Ω load. Features a wide supply voltage range from 20V to 94V (single) or ±10V to ±42V (dual), with a maximum dual supply of ±42V. Offers 115dB voltage gain and 8MHz gain bandwidth product. Includes mute functionality and a TO-220 package. Operating temperature range is 0°C to 70°C.
PackageTO-220
Power68W
Quick Jump:
Technical Specifications
Texas Instruments LM3886TF/NOPB technical specifications.
General
| Package/Case | TO-220 |
| Common Mode Rejection Ratio | 85dB |
| Dual Supply Voltage | 28V |
| Gain | 3dB |
| Gain Bandwidth Product | 8MHz |
| Height | 10.64mm |
| Input Bias Current | 1uA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Contains Lead |
| Length | 20.02mm |
| Load Impedance | 8R |
| Max Dual Supply Voltage | 42V |
| Min Dual Supply Voltage | 10V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Power | 68W |
| Max Power Dissipation | 125W |
| Max Supply Voltage | 84V |
| Min Supply Voltage | 20V |
| Number of Channels | 1 |
| Output Current | 11.5A |
| Output Power | 68W |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Power Dissipation | 125W |
| Power Supply Rejection Ratio (PSRR) | 120dB |
| Quiescent Current | 50mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Overture™ |
| Supply Type | Single, Dual |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 115dB |
| Width | 4.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3886TF/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3886TF/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

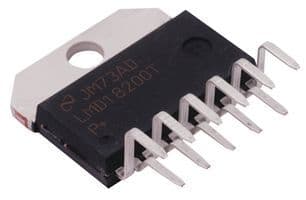

Product Images
