Dual differential comparator IC featuring two independent channels. Operates with a dual supply voltage range from 1V to 18V, or a single supply from 2V to 30V. Offers a fast response time of 300ns and a voltage gain of 106.02dB. Input bias current is 250nA with an input offset voltage of 5mV. This through-hole component is packaged in an 8-PDIP with TTL output compatibility and a maximum output current of 20mA per channel.
PackagePDIP
Current1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM393P technical specifications.
General
Package/Case
PDIP
Dual Supply Voltage
9V
Height
4.57mm
Input Bias Current
250nA
Input Offset Voltage (Vos)
5mV
Lead Free
Lead Free
Length
9.81mm
Max Dual Supply Voltage
18V
Min Dual Supply Voltage
1V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Current
500uA
Max Supply Voltage
30V
Min Supply Voltage
2V
Mount
Through Hole
Number of Channels
2
Number of Elements
2
Output Compatibility
CMOS
Output Current
20mA
Output Current per Channel
6mA
Output Type
TTL
Package Quantity
50
Packaging
Rail/Tube
Quiescent Current
2.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
300ns
RoHS Compliant
Yes
Series
LM393
Supply Current
1mA
Technology
BIPOLAR
Thickness
3.9mm
Voltage Gain
106.02dB
Weight
0.015535oz
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM393P Datasheet
Download the complete datasheet for Texas Instruments LM393P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

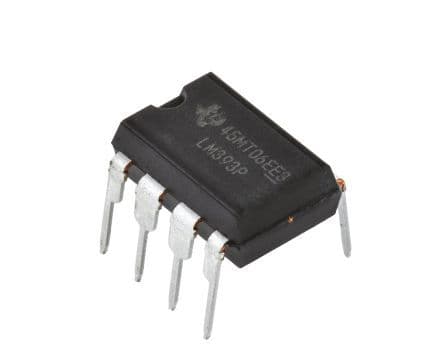

Product Images
