Dual differential comparator IC featuring two independent comparator elements. Operates with a wide supply voltage range from 1V to 36V, drawing a maximum supply current of 500µA. Offers a fast response time of 0.3µs and a voltage gain of 106.02dB. Designed for through-hole mounting in an 8-PDIP package, this commercial-grade component is RoHS compliant and lead-free, suitable for operation between 0°C and 70°C.
PackagePDIP
Current1mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM393PE4 technical specifications.
General
| Package/Case | PDIP |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 5mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 500uA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current per Channel | 6mA |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Response Time | 0.3us |
| RoHS Compliant | Yes |
| Series | LM393 |
| Supply Current | 1mA |
| Technology | BIPOLAR |
| Voltage Gain | 106.02dB |
| Weight | 0.015535oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM393PE4 Datasheet
Download the complete datasheet for Texas Instruments LM393PE4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

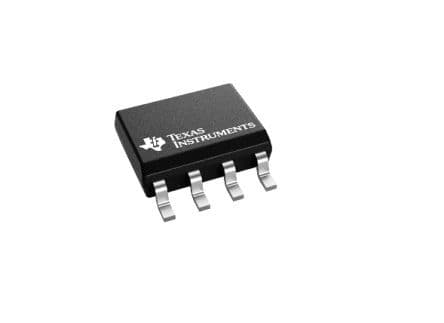

Product Images
