Texas Instruments
LM4040A30IDBZT
Fixed voltage, 45-µA, precision micropower shunt voltage reference 3-SOT-23 -40 to 85
PackageSOT-23-3
Quick Jump:
Technical Specifications
Texas Instruments LM4040A30IDBZT technical specifications.
General
| Package/Case | SOT-23-3 |
| Cathode Current | 77uA |
| Height | 1.02mm |
| Lead Free | Lead Free |
| Length | 3.04mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 15mA |
| Max Output Voltage | 3V |
| Number of Channels | 1 |
| Output Current | 15mA |
| Output Voltage | 3V |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt, Fixed |
| Reference Voltage | 3V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Thickness | 1mm |
| Tolerance | 0.1% |
| Width | 1.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM4040A30IDBZT Datasheet
Download the complete datasheet for Texas Instruments LM4040A30IDBZT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

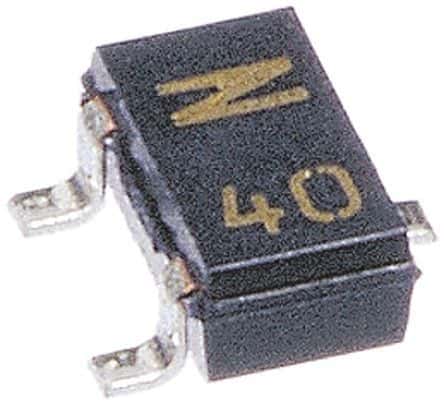

Product Images
