Precision micropower shunt voltage reference, adjustable output from 1.233V to 10V with 1% tolerance. Features a low cathode current of 70µA and a maximum output current of 12mA. Designed for surface mount applications in a 3-SOT-23 package, operating from -40°C to 125°C. RoHS compliant with a maximum power dissipation of 306mW.
PackageSOT-23
Current Rating12A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM4041DIM3-ADJ/NOPB technical specifications.
General
Package/Case
SOT-23
Cathode Current
70uA
Current Rating
12A
Height
0.93mm
Lead Free
Lead Free
Length
2.92mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
12mA
Max Output Voltage
10V
Min Output Voltage
1.233V
Max Power Dissipation
306mW
Mount
Surface Mount
Nominal Supply Current
65mA
Number of Channels
1
Output Current
12mA
Output Type
Adjustable
Output Voltage
10V
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Adjustable
Reference Voltage
10V
RoHS Compliant
Yes
Termination
SMD/SMT
Tolerance
1%
Width
1.3mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM4041DIM3-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4041DIM3-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

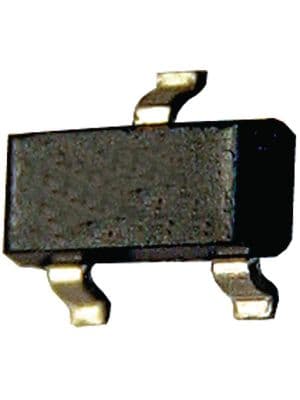

Product Images
