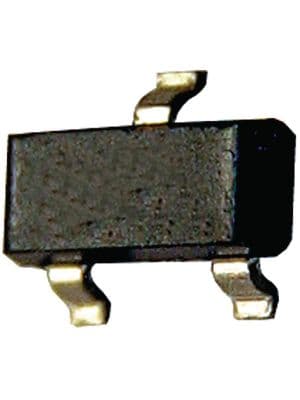

Adjustable precision Zener shunt regulator, offering 1% voltage tolerance. Features a minimum output voltage of 2.495V and a maximum output voltage of 37V, with a maximum output current of 100mA. Operates within a temperature range of -40°C to 85°C and supports a cathode current of 1mA. Packaged in a 3-SOT-23 surface mount configuration, supplied on tape and reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM431BIM3/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM431BIM3/NOPB technical specifications.
| Package/Case | SOT-23 |
| Cathode Current | 1mA |
| Lead Free | Lead Free |
| Max Input Voltage | 37V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Output Voltage | 37V |
| Min Output Voltage | 2.495V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current | 100mA |
| Output Type | Adjustable |
| Output Voltage | 37V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt, Adjustable |
| Reference Voltage | 36V |
| Supply Current | 1A |
| Termination | SMD/SMT |
| Thickness | 1mm |
| Tolerance | 1% |
| Voltage | 37V |
| RoHS | Compliant |
