General Purpose Audio Codec featuring 2 Analog-to-Digital Converters (ADCs) and 2 Digital-to-Analog Converters (DACs), supporting 2 ADC channels and 2 DAC channels. This integrated circuit offers 7 analog inputs and 4 analog outputs, with a total of 8 channels. It operates with an 18-bit resolution and a 48kHz sampling rate, achieving a 90dB Signal-to-Noise Ratio (SNR) and 60dB gain. Interface options include I2C, SPI, Serial, and I2S. The component is housed in a 48-Pin LQFP surface mount package, measuring 7mm in length and width, and 1.4mm in height, with an operating supply voltage range of 3V to 5.5V.
PackageLQFP
MountingSurface Mount
Power280mW
Quick Jump:
Technical Specifications
Texas Instruments LM4550BVH/NOPB technical specifications.
General
| Package/Case | LQFP |
| Gain | 60dB |
| Height | 1.4mm |
| Interface | I2C, SPI, Serial, I2S |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of ADC Channels | 2 |
| Number of Analog Inputs | 7 |
| Number of Analog Outputs | 4 |
| Number of Channels | 8 |
| Number of D/A Converters | 2 |
| Number of DAC Channels | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 250 |
| Packaging | Tray |
| Power Consumption | 280mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 48kHz |
| Sampling Rate | 48KS/s |
| Signal to Noise Ratio (SNR) | 90dB |
| Termination | SMD/SMT |
| Type | General Purpose |
| Weight | 0.006409oz |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM4550BVH/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4550BVH/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

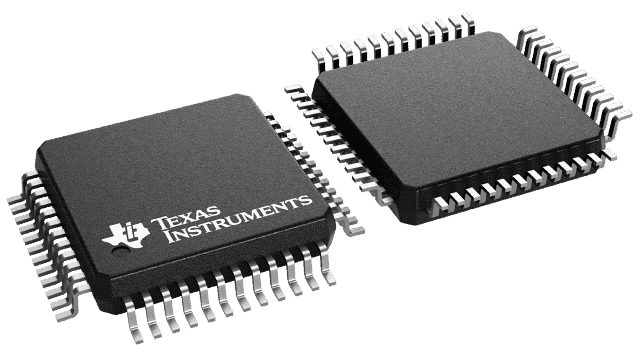

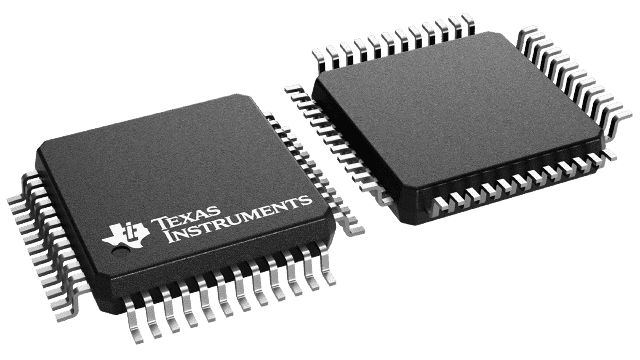

Product Images
