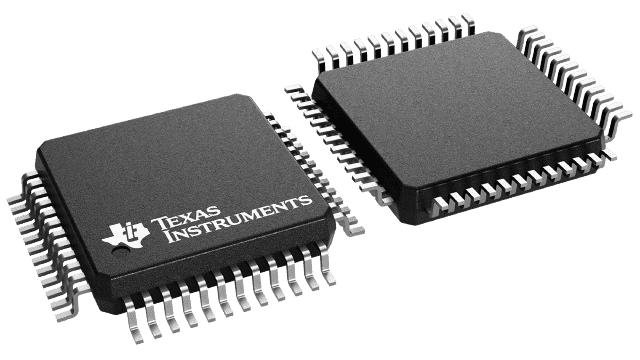

18-bit AC'97 Rev 2.1 compliant audio codec with sample rate conversion and National 3D Sound. Features 2 A/D converters and 2 D/A converters, supporting 7 analog inputs and 4 analog outputs. Operates from a 3V to 5.5V supply voltage with a maximum operating temperature of 85°C. Packaged in a 48-LQFP for surface mounting, this RoHS compliant component offers a 90dB signal-to-noise ratio and a 48kS/s sampling rate.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM4550BVHX/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM4550BVHX/NOPB technical specifications.
| Package/Case | LQFP |
| Interface | Serial |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of A/D Converters | 2 |
| Number of ADC Channels | 2 |
| Number of Analog Inputs | 7 |
| Number of Analog Outputs | 4 |
| Number of D/A Converters | 2 |
| Number of DAC Channels | 2 |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Consumption | 280mW |
| Radiation Hardening | No |
| Resolution | 18b |
| RoHS Compliant | Yes |
| Sampling Rate | 48KS/s |
| Series | LM4550B |
| Signal to Noise Ratio (SNR) | 90dB |
| Type | General Purpose |
| RoHS | Compliant |
