High-fidelity, high-performance audio operational amplifier featuring 2 channels and a 55MHz bandwidth. This through-hole mounted IC offers a 110dB Common Mode Rejection Ratio and Power Supply Rejection Ratio, with a 140dB Voltage Gain. It operates with a dual supply voltage range of 2.5V to 17V, drawing 10mA of supply current and delivering 26mA output current per channel. The component boasts a low input bias current of 10nA and input offset voltage of 100µV, with a slew rate of 20V/µs. Packaged in an 8-PDIP, it operates across a temperature range of -40°C to 85°C and is RoHS compliant.
PackagePDIP
Current10mA
MountingThrough Hole
Quick Jump:
Technical Specifications

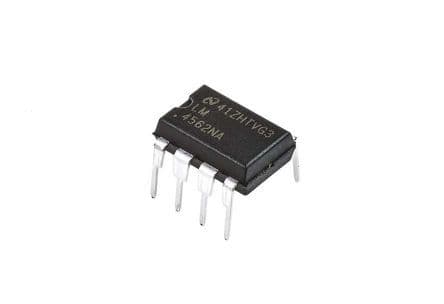

Texas Instruments LM4562NA/NOPB technical specifications.
General
| Bandwidth | 55MHz |
| Package/Case | PDIP |
| Common Mode Rejection Ratio | 110dB |
| Gain Bandwidth Product | 55MHz |
| Height | 5.08mm |
| Input Bias Current | 10nA |
| Input Offset Voltage (Vos) | 100uV |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Load Impedance | 2kR |
| Max Dual Supply Voltage | 17V |
| Min Dual Supply Voltage | 2.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Operating Supply Current | 10mA |
| Operating Supply Voltage | 17V |
| Output Current | 26mA |
| Output Current per Channel | 26mA |
| Package Quantity | 40 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 110dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 20V/µs |
| Supply Current | 10mA |
| Unity Gain Bandwidth Product | 55MHz |
| Voltage Gain | 140dB |
| Width | 6.35mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM4562NA/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM4562NA/NOPB to view detailed technical specifications.
