Analog output temperature sensor with a ±3°C accuracy and 10mV/°C gain. Designed for surface mounting in a SOT-23 package, this component operates across a -20°C to 100°C temperature range. It features a 4V to 10V supply voltage range and a typical quiescent current of 120µA.
PackageSOT-23
Current120uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM45CIM3/NOPB technical specifications.
General
| Package/Case | SOT-23 |
| Interface | Analog |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -20°C |
| Max Supply Voltage (DC) | 10V |
| Min Supply Voltage (DC) | 4V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Output | ANALOG |
| Output Current | 10mA |
| Output Type | Analog, Analog Voltage |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 120uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Supply Current | 120uA |
| Termination | SMD/SMT |
| Thickness | 1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM45CIM3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM45CIM3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

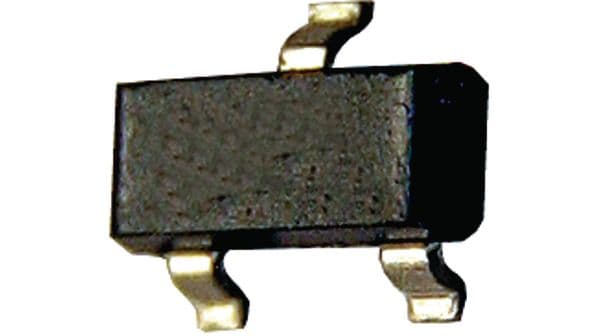

Product Images
