Synchronous step-down voltage converter, this integrated circuit offers a wide input voltage range from 3.5V to 60V, supporting a maximum output current of 2A. Featuring an adjustable output voltage up to 28V, it operates efficiently with a low quiescent current of 27µA. The component is housed in a lead-free HTSSOP package, suitable for surface mounting and designed for operation across a temperature range of -40°C to 125°C. This RoHS compliant device is supplied on tape and reel.
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM46002PWPR technical specifications.
General
| Package/Case | HTSSOP |
| Lead Free | Lead Free |
| Max Input Voltage | 60V |
| Min Input Voltage | 3.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 2A |
| Max Output Voltage | 28V |
| Min Output Voltage | 1V |
| Min Supply Voltage | 3.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 60V |
| Output Configuration | Positive |
| Output Current | 2A |
| Output Type | Adjustable |
| Output Voltage | 28V |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Quiescent Current | 27uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | Yes |
| Weight | 0.002212oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM46002PWPR Datasheet
Download the complete datasheet for Texas Instruments LM46002PWPR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

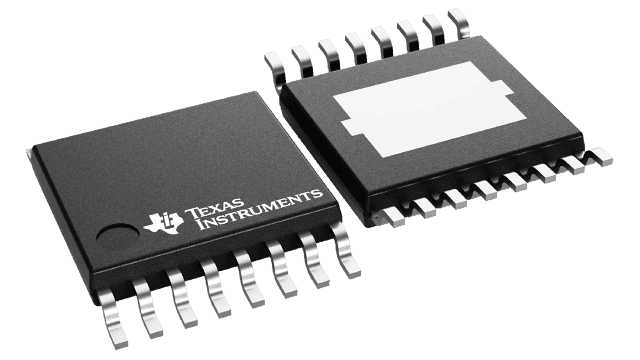

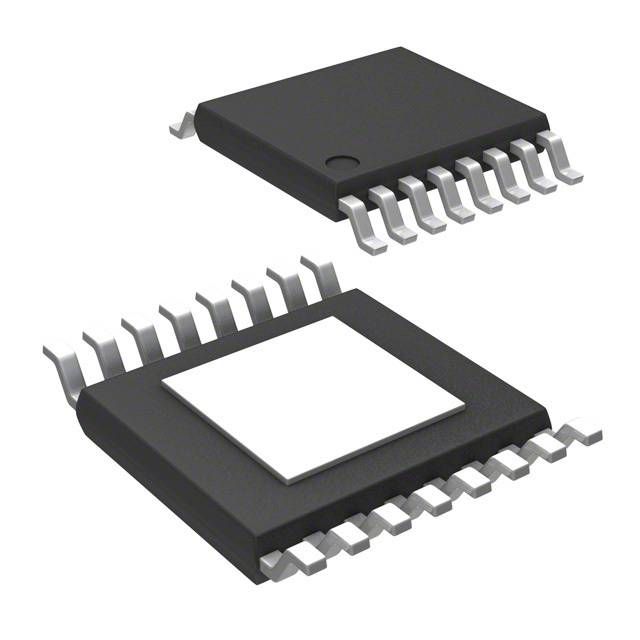

Product Images
