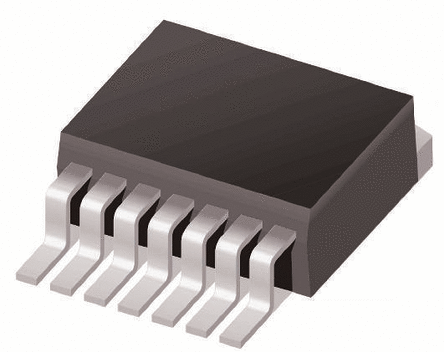

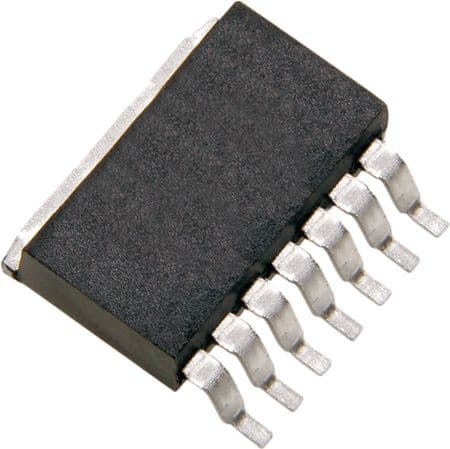

Stereo audio power amplifier IC featuring 11W output power per channel into an 8Ω load. Offers a voltage gain of 34dB and a Power Supply Rejection Ratio (PSRR) of 50dB. Operates from a single supply voltage ranging from 9V to 32V, with a typical operating voltage of 28V. Housed in a TO-263-7 package, this component has a quiescent current of 20mA and a maximum output current of 2A. Suitable for operation between 0°C and 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM4752TS/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TO-263-7 |
| Gain | 34dB |
| Height | 4.57mm |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Load Impedance | 8R |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 2A |
| Max Output Power | 11W |
| Max Power Dissipation | 62.5W |
| Max Supply Voltage | 32V |
| Min Supply Voltage | 9V |
| Number of Channels | 2 |
| Operating Supply Voltage | 28V |
| Output Power | 11W |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Power Dissipation | 62.5W |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Quiescent Current | 20mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Type | Single |
| Voltage Gain | 34dB |
| Width | 8.64mm |
| RoHS | Compliant |
