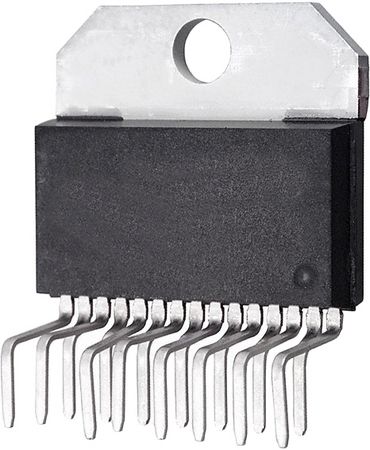

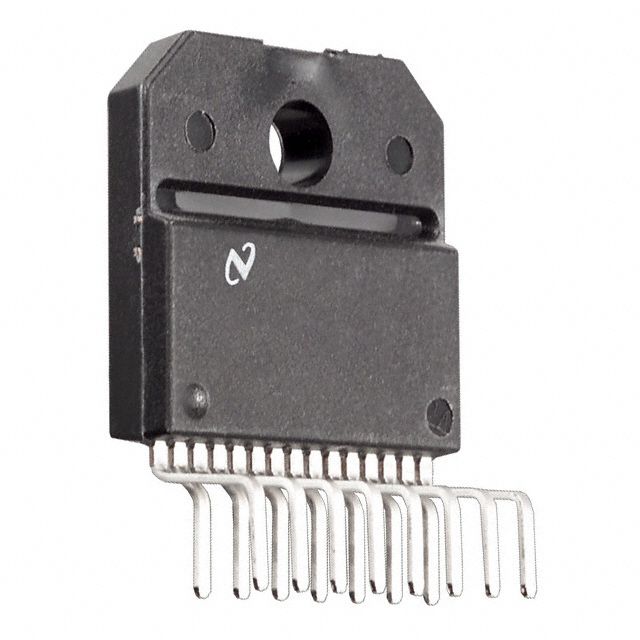

Dual 40W audio amplifier IC featuring a TO-220 package for through-hole termination. Delivers 40W output power per channel with a load impedance of 8 Ohms. Operates with dual supply voltages from 10V to 28V, or single supply from 20V to 60V. Boasts a high Power Supply Rejection Ratio (PSRR) of 125dB and Common Mode Rejection Ratio (CMRR) of 75dB. Features a gain bandwidth product of 8MHz and a voltage gain of 115dB. Operating temperature range is -20°C to 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM4766TF/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM4766TF/NOPB technical specifications.
| Package/Case | TO-220 |
| Common Mode Rejection Ratio | 75dB |
| Dual Supply Voltage | 28V |
| Gain Bandwidth Product | 8MHz |
| Height | 10.77mm |
| Input Bias Current | 10nA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Contains Lead |
| Length | 20.14mm |
| Load Impedance | 8R |
| Max Dual Supply Voltage | 30V |
| Min Dual Supply Voltage | 10V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Power | 40W |
| Max Power Dissipation | 62.5W |
| Max Supply Voltage | 60V |
| Min Supply Voltage | 20V |
| Number of Channels | 2 |
| Output Power | 40W |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Power Dissipation | 62.5W |
| Power Supply Rejection Ratio (PSRR) | 125dB |
| Quiescent Current | 48mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Overture™ |
| Supply Current | 48mA |
| Supply Type | Single, Dual |
| Termination | Through Hole |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 115dB |
| Width | 4.62mm |
| RoHS | Compliant |
