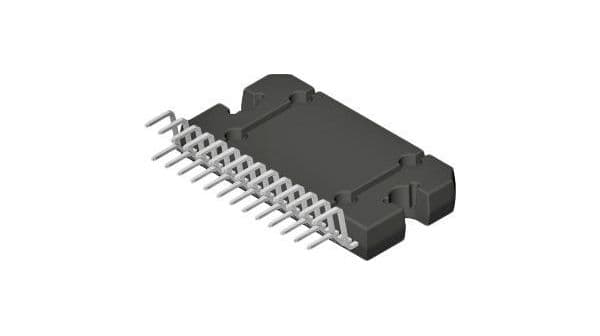

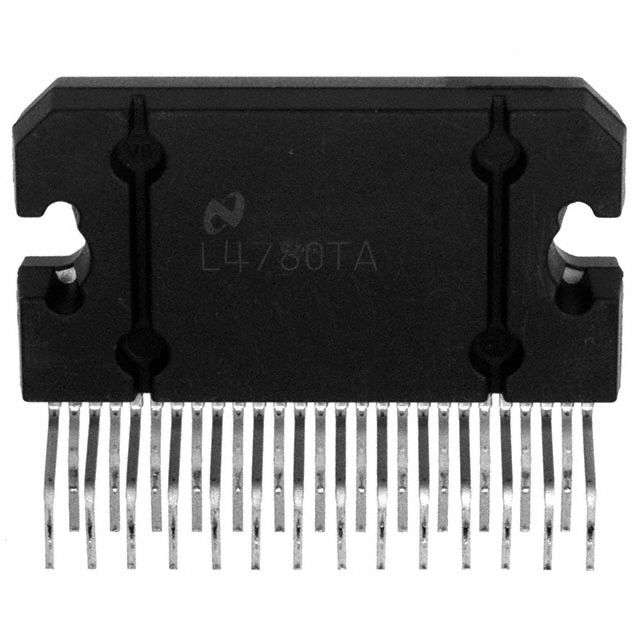

Stereo 60W, Mono 120W audio power amplifier IC featuring a 34dB voltage gain and 8MHz gain bandwidth product. This through-hole component offers a dual supply voltage range of 10V to 42V, with a maximum output power of 60W into a 4Ω load impedance. Key specifications include a 110dB common mode rejection ratio and 120dB power supply rejection ratio. The amplifier operates within a temperature range of -20°C to 85°C and is housed in a TO-220 package.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM4780TA/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LM4780TA/NOPB technical specifications.
| Package/Case | TO-220 |
| Common Mode Rejection Ratio | 110dB |
| Dual Supply Voltage | 28V |
| Gain | 34dB |
| Gain Bandwidth Product | 8MHz |
| Height | 0.618inch |
| Input Bias Current | 1uA |
| Input Offset Voltage (Vos) | 10mV |
| Lead Free | Contains Lead |
| Length | 29.21mm |
| Load Impedance | 4R |
| Max Dual Supply Voltage | 42V |
| Min Dual Supply Voltage | 10V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -20°C |
| Max Output Power | 60W |
| Max Power Dissipation | 125W |
| Max Supply Voltage | 84V |
| Min Supply Voltage | 20V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Output Power | 60W |
| Package Quantity | 15 |
| Packaging | Rail/Tube |
| Power Dissipation | 125W |
| Power Supply Rejection Ratio (PSRR) | 120dB |
| Quiescent Current | 110mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Overture™ |
| Supply Current | 110mA |
| Supply Type | Single, Dual |
| Unity Gain Bandwidth Product | 8MHz |
| Voltage Gain | 115dB |
| Width | 0.177inch |
| RoHS | Compliant |
